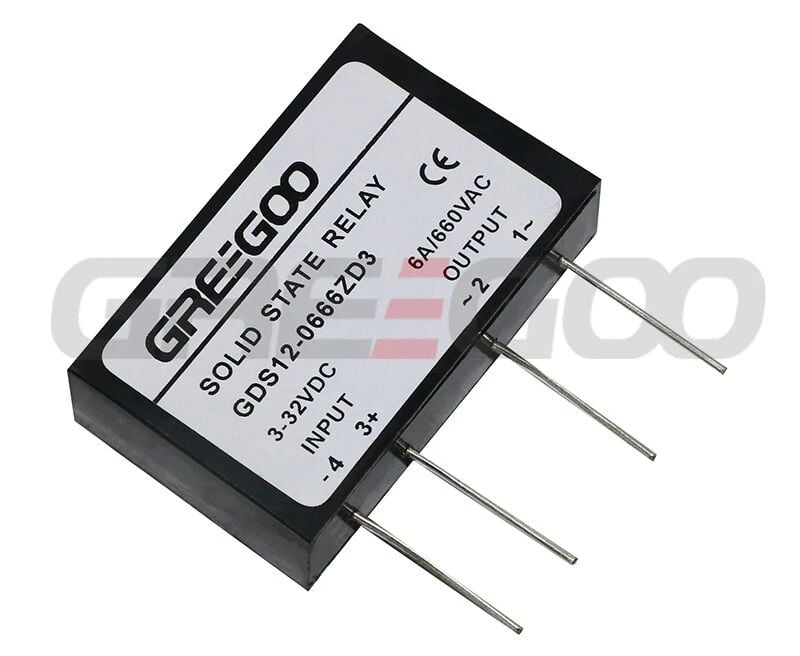

Solid State Relay 6A 440V 660V 3-32VDC
- Optical isolation between input and output circuits.
- Control signal with TTL logic interface.
- Solid-state contactless switch output, no spark or arc during switching.
- Zero voltage turn-on and zero current turn-off at the output.
- PCB direct plug-in soldering structure, small size, easy installation.
- The product is mainly used for isolation control between weak and strong electrical currents in industrial automation. It can also be used as a driver stage for various high-power output devices and low-power appliances, such as motors, solenoids, and power supplies for contactless switch control
|
Part numbers
|
GDS12-0624ZD3, GDS12-0644ZD3, GDS12-0666ZD3 |
| Control Voltage | 3～32VDC |
| Control Current | 6～22mA |
| Start Current | ≥6 mA |
| Turn-off Voltage | ≤1 VDC |
| On/Off Time | ≤15 mS |
| Load Voltage | 24～240 VAC; 24～440 VAC; 60～660 VAC |
| Maximum Load Current | 6A |
| On-state Voltage Drop | ≤1.5 V; ≤1.5 V; ≤2.8 V |
| Off-state Voltage | ≥ 600 V; ≥ 900 V; ≥ 1600 V |
| Isolation Voltage | ≥ 2000 V |
| Insulation Resistance | ≥ 100 MΩ |
| Operating Temperature | -25 to 75 ℃ |
| Power Frequency | 50/60 HZ |
| Load Current Safety Factor | 2-3 times for resistive load, 3-4 times for inductive load |
| Dimensions (Code) | 43×27×12mm GDS12-666ZD3 Solid State Relay 6A 440V 660V 3-32VDC |
